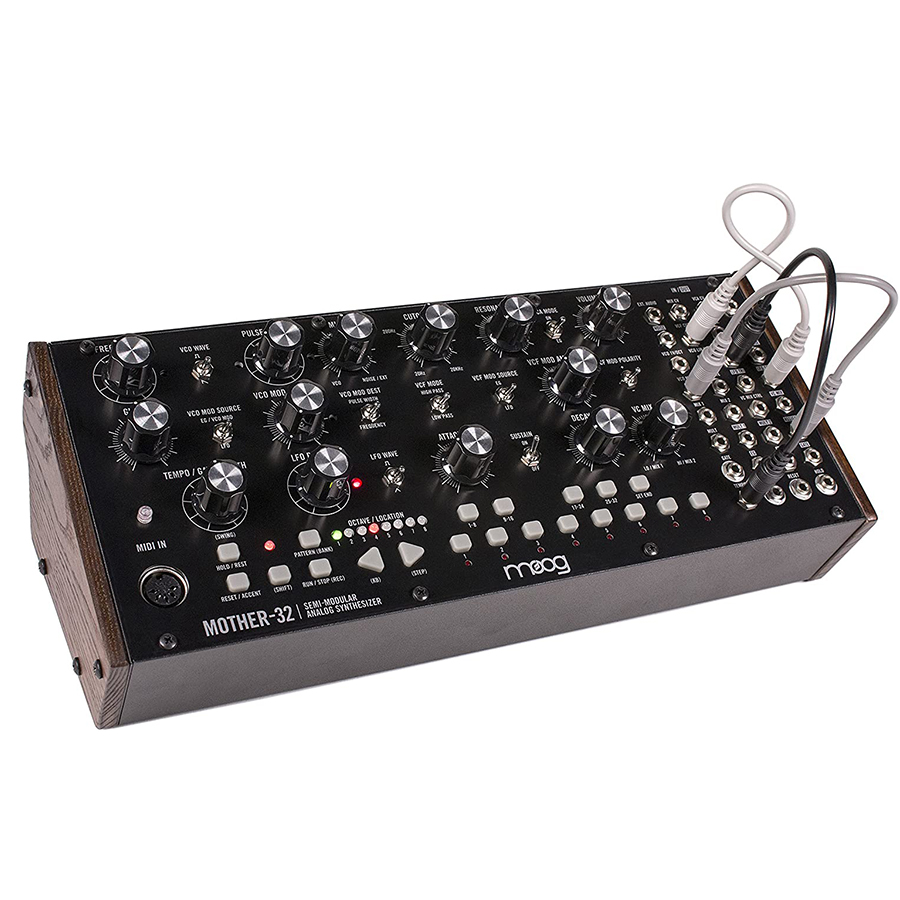

Mother-32
Mother-32® 是一款直觀且可擴展的半模塊化合成器，可為任何創意、電子或模塊化生態系統添加原始模擬聲音、強大的音序和廣泛的互連性。
強大的音序器驅動同步聲音，同時利用其模塊化跳線台和可分配輸出來產生具有動態和可修改聲音處理功能的活生生的、會呼吸的有機體。將多個控制和聲源連接到 Mother-32 的電壓控制混音器中，真正釋放這款強大樂器的巨大潛力，或者拉出所有的跳線，插入 MIDI 電纜，然後從任何配備 MIDI 的設備上簡單地驅動您的 Mother-32 .
無盡探索
無需線纜即可快速、激發靈感的音樂創作和探索。
準備好，進入模塊化合成的廣闊聲音領域。

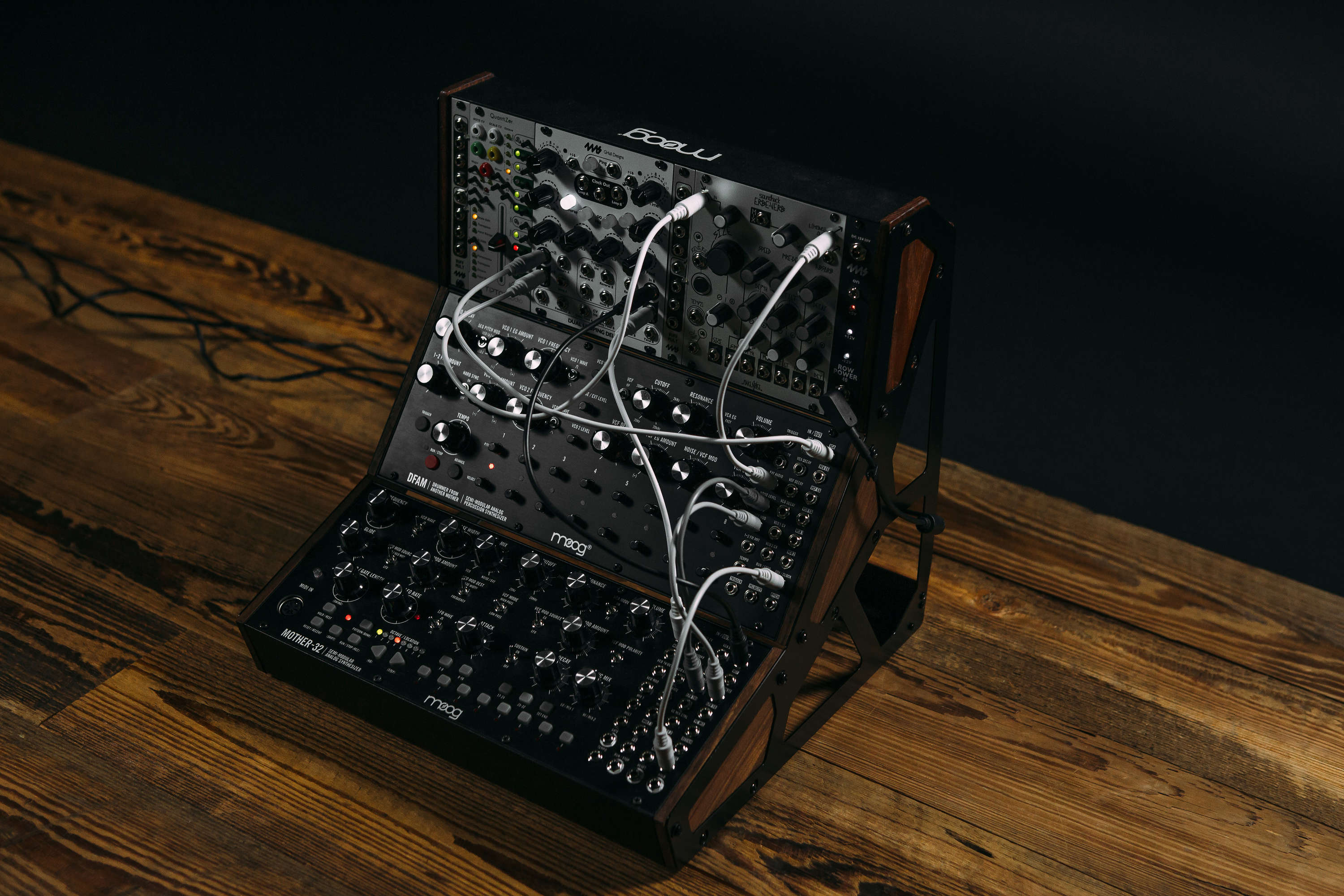

創造新的想法並在兩種獨特的音序器模式下進行表演，多達 64 個用於現場表演的板載音序列。 結合多個 Mother-32，開啟聲音、想像力和創造力的新領域。 通過完整的 Eurorack 集成進一步推進。
探索Mother 32

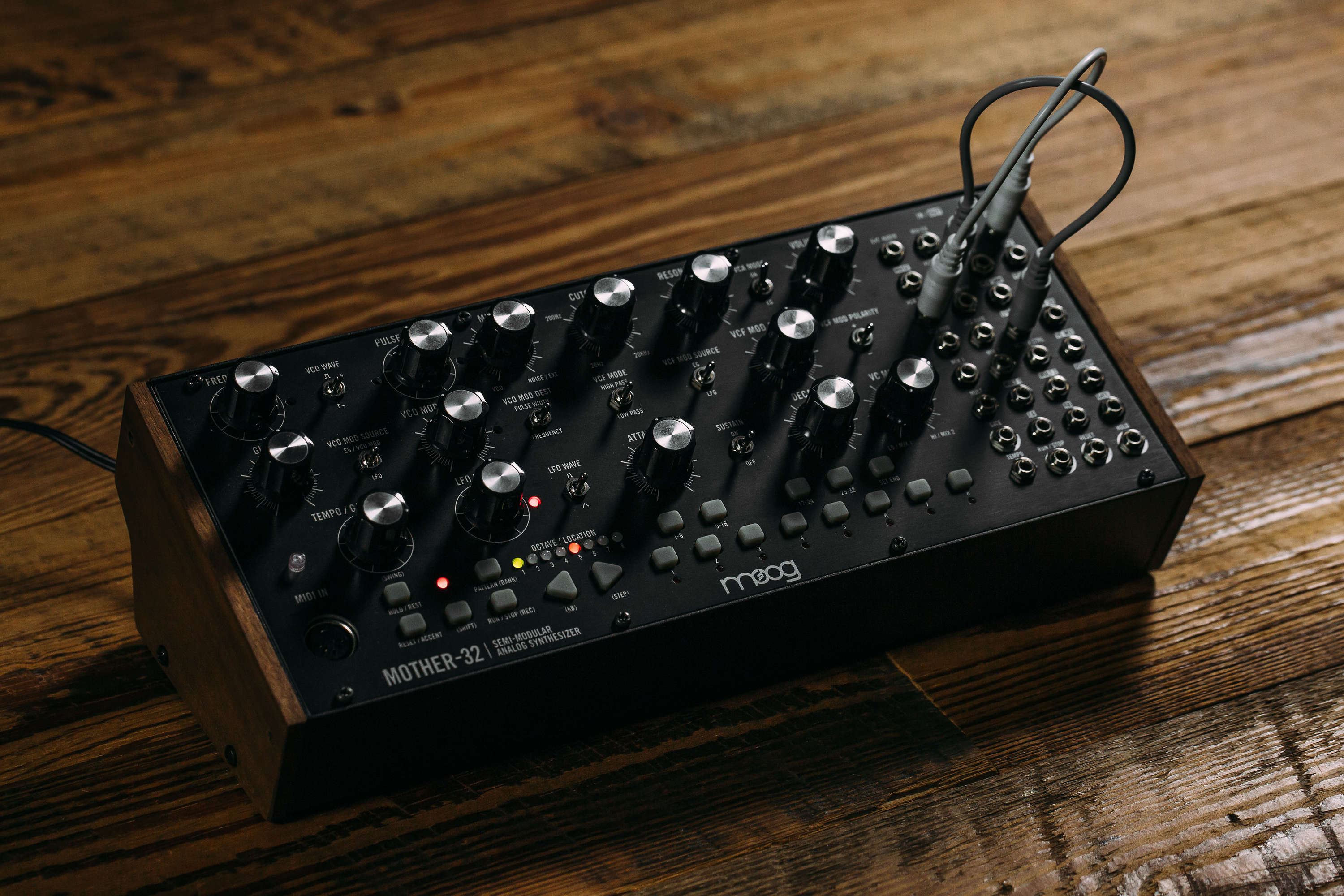

Mother 32 能固定在一個帶有木邊的擠壓鋁製外殼中，但也可以很容易地重新安置到幾乎任何 Eurorack 外殼上。
在原型階段，Moog 與 3 個獨特的合成器合作：Erika（多維傳輸）、Max Ravitz（Ghostly International）和 Bana Haffar，製作了一段探索 Mother-32 強大能力的視頻。通過表演和聲音設計，每位藝術家都展示了在 Mother-32 中發現的大量詞彙。所有補丁都是現場演奏的，沒有配音。
SOUND ENGINE
Analog
POLYPHONY
Monophonic
KEYPAD
13 Note
STEP SEQUENCER
32-Step with 64 Sequence Locations, Keyboard and Step Edit Modes
SEQUENCER PANEL CONTROLS
Tempo, Swing, Run/Stop, Hold, and Reset
SOUND SOURCES
1 Oscillator With Pulse and Saw Waveforms, 1 White Noise Generator, 1 External Audio Input
OSCILLATOR RANGE
8Hz-8KHz (16KHz max with LFO/CV)
CLOSE
FREQUENCY CONTROL
+/- 1 Octave
VOLTAGE CONTROLLED MIXER
+/- 5V Crossfades Between the Selected Oscillator Wave and External Audio Input (Normalled to White Noise)
FILTER
20Hz-20KHz Switchable Low Pass / High Pass 4-Pole Transistor Ladder Filter
GLIDE
Assigned to Pitch (On/Off Per Step)
MODULATION SOURCES
LFO (TriangLe or Square), VCO Mod Input (Normalled to EG)
MODULATION DESTINATIONS
Pulse Width, Oscillator Frequency, Filter Cutoff ( Modulation Polarity)
LFO PANEL RATE
1Hz to 350Hz (600Hz max)
ENVELOPE
Selectable AD (Multi-Trigger) / ASD (Single-Trigger)
VC MIXER
Voltage Controlled Crossfade/Mix Circuit for Mixing Two DC Coupled Signals
PATCHBAY
32x 3.5mm Jacks
CV/GATE INPUTS
External Audio, Mix CV, VCA CV, VCF Cutoff, VCF Resonance, VCO 1V/Octave, VCO Linear FM, VCO Modulation, LFO Rate, Mix 1, Mix 2, VC Mix Control, Mult, Gate, Tempo, Run/Stop, Reset and Hold
CV/GATE OUTPUTS
VCA, Noise, VCF, VCO Saw, VCO Pulse, LFO Triangle, LFO Square, VC Mix, Mult , Mult 2, Assign, EG, KB, Gate
ASSIGNABLE OUTPUT
Multipurpose control output for selecting from 16 available functions: Sequencer Accent, Sequencer Clock, Sequencer Clock /2 Sequencer Clock /4, Decimated "Ramp”, Decimated "Saw”, Decimated "Triangle”, Stepped Random, STEP 1, MIDI Note On Velocity, MIDI Channel Aftertouch, MIDI Pitch Bend, MIDI CC1 Mod Wheel, MIDI CC2, MIDI CC4 and MIDI CC7
EXTERNAL AUDIO INPUT
3.5mm
AUDIO OUTPUT
¼” TS Line / ¼” TRS Headphones (Shared Output Jack)
MIDI IN
5-Pin DIN input
MIDI CONTROL
Note, Gate, Pitch Bend (Mod Wheel, After Pressure, Velocity Available Via Assignable Output)
INCLUDED POWER SUPPLY
110-250VAC, 50-60Hz, +12VDC 1A
POWER CONSUMPTION
2.8W
EURORACK CURRENT DRAW
230mA (+12V – from 10-pin header)
EURORACK MOUNTING DIMENSIONS
60HP (.69” 26mm Module Depth)
WEIGHT
3.5lbs
DIMENSIONS
12.57”W x 4.21“H (with knobs) x 5.24“D
Specifications Subject To Change Without Notice
